Flex-Box Cold Storage Containers

Our continued innovation have resulted in the perfect box for transport AND COLD STORAGE.

  • Warranty: 5 years worldwide warranty on all engines
  • Engine types: Carrier or Thermo King

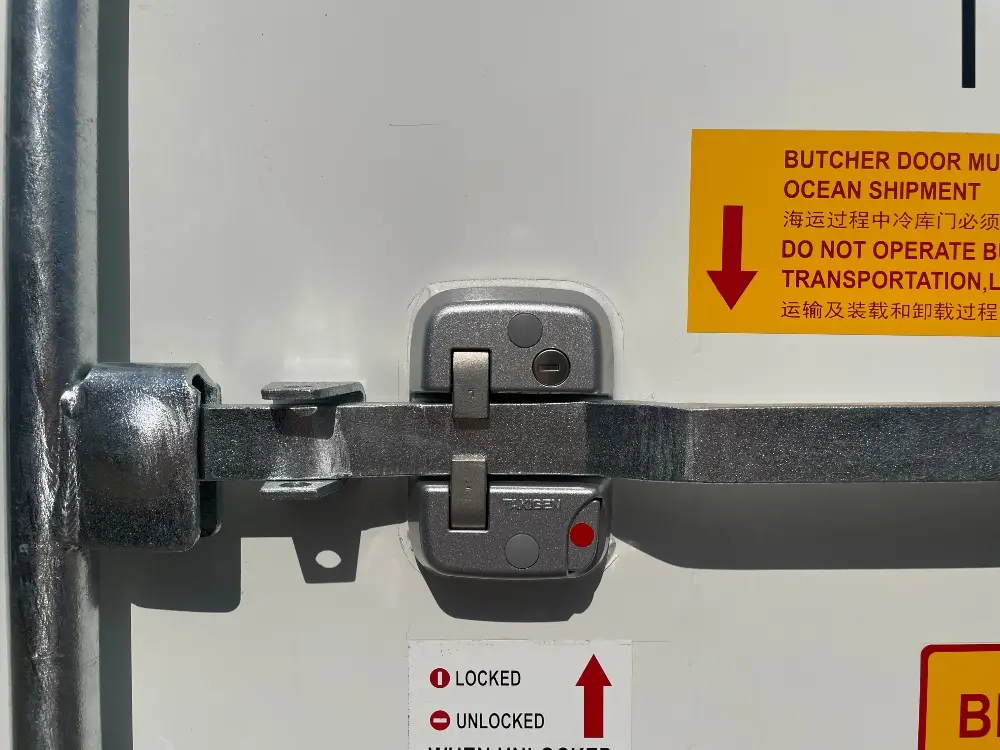

  • Ice Breaker Door (PATENTED) Single locking rod on right side door, longer handle for extra leverage and rubber grip for a more comfortable operation. Easy door openingeven with frost and ice build-up.
  • NewBright Lights and High Pitched Panic. Operation plate improved for safety.
  • Ramp lip:along full length of each door. Allows for two ramps side by side for wider load. Aluminium ramp option.
  • Sliding curtains: are heavy duty

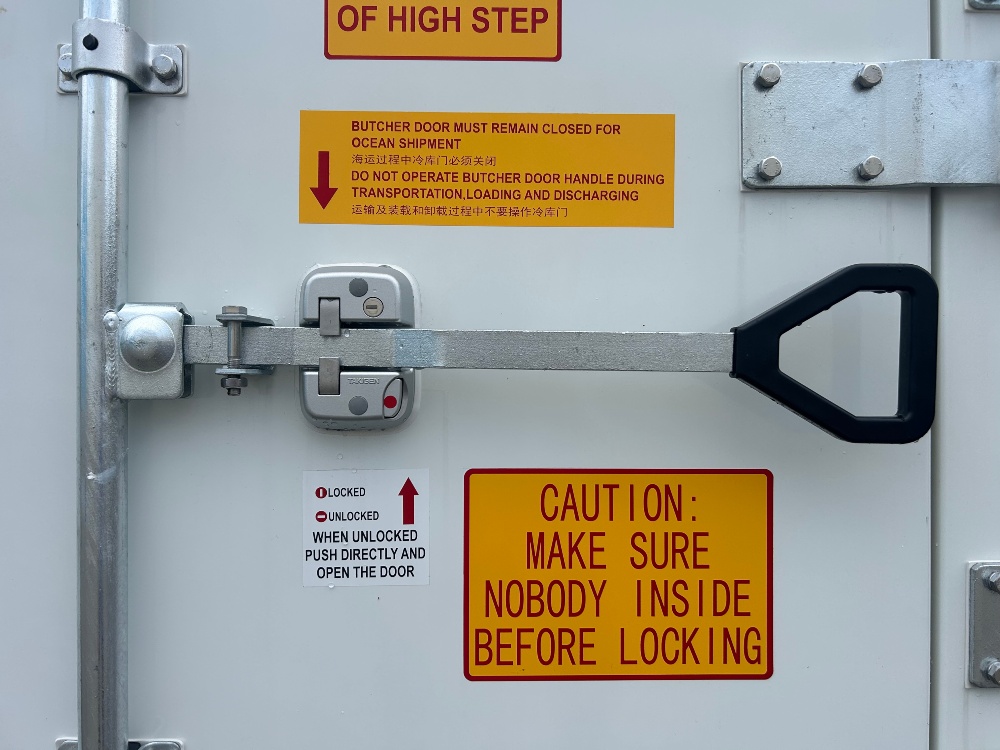

  • Butcher door: clearing height and width is improved
  • Availability:10’, 20’, 20’hc, 40’hc available World-Wide.
  • Dual Voltage: transformer optional.
  • Key lock door system.
  • Safety door - can be opened from the inside.
  • High locking gear - 1m from ground.
  • Scuff liner on the sidewalls protect the container from damage during loading and unloading.
  • 10’ shipped as 20’ with connectors.
  • Floor types: Flat floor or T bar floor available.
  • Easy Cleaning: with external PU paint.
  • Remote Monitoring: Optional.

Reefer Safety Video

Global Service Centres

specification__4206f713a8122758b2c978d3230278d4
THERMO KING

https://dealers.thermoking.com/dealer-locator.html

Please click on the current location tab. After approximately 10 seconds an interactive map will appear with all service centres in your location.

specification__e2eff4d9e325ee3307b50be249018c13
Carrier

https://www2.carrier.transicold.com/wcsl.nsf?opendatabase

Use Carrier’s interactive map to find your closest Service Centre.

Manuals, Specifications and Warranties

Operating Manuals

Specifications

Warranties

Engine Models

Spec. for 20'Reefer (20'RF)

  • External dimensions of 20'RF
  • Length: 6,058 mm
  • Width: 2,438 mm
  • Height: 2,591 mm
  • Internal dimensions of 20'RF
  • Length: 5,450 mm
  • Width: 2,290 mm
  • Height: 2,286 mm
  • Door openings of 20'RF
  • Width: 2,294 mm
  • Height at sill: 2,230 mm
  • Cargo access height: 2,230 mm
  • Internal cubic capacity of 20'RF: 28.6 CU.M
  • Weights & ratings of 20'RF
  • Max. Gross Weight: 30,480 kg
  • Tare weight: 2,830 kg
  • Max. payload: 27,650

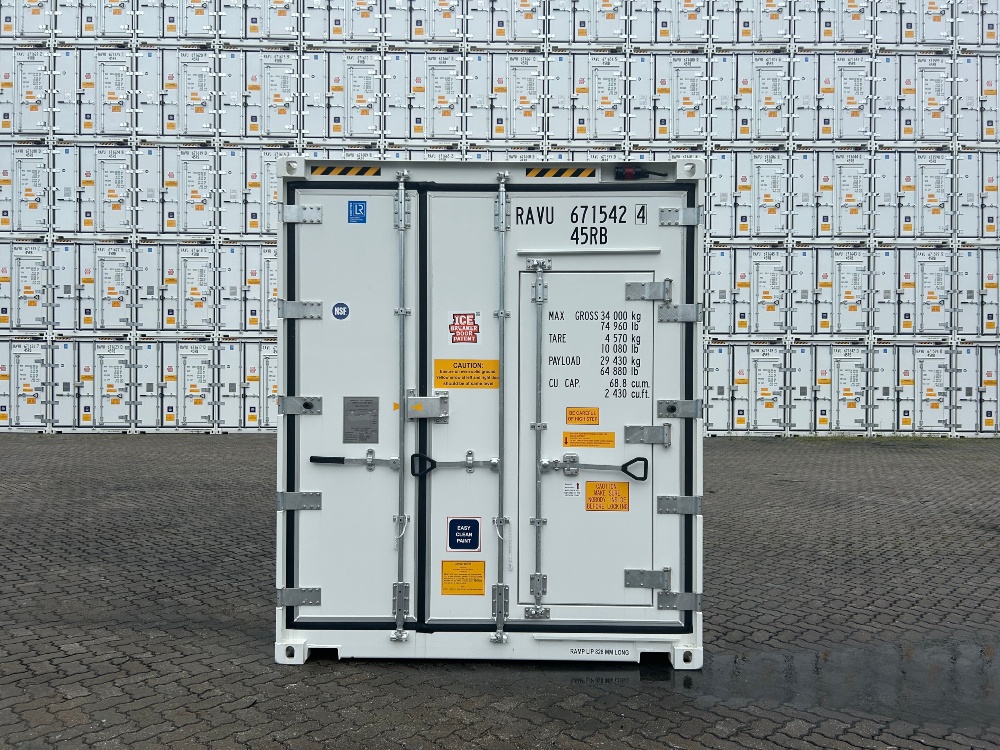

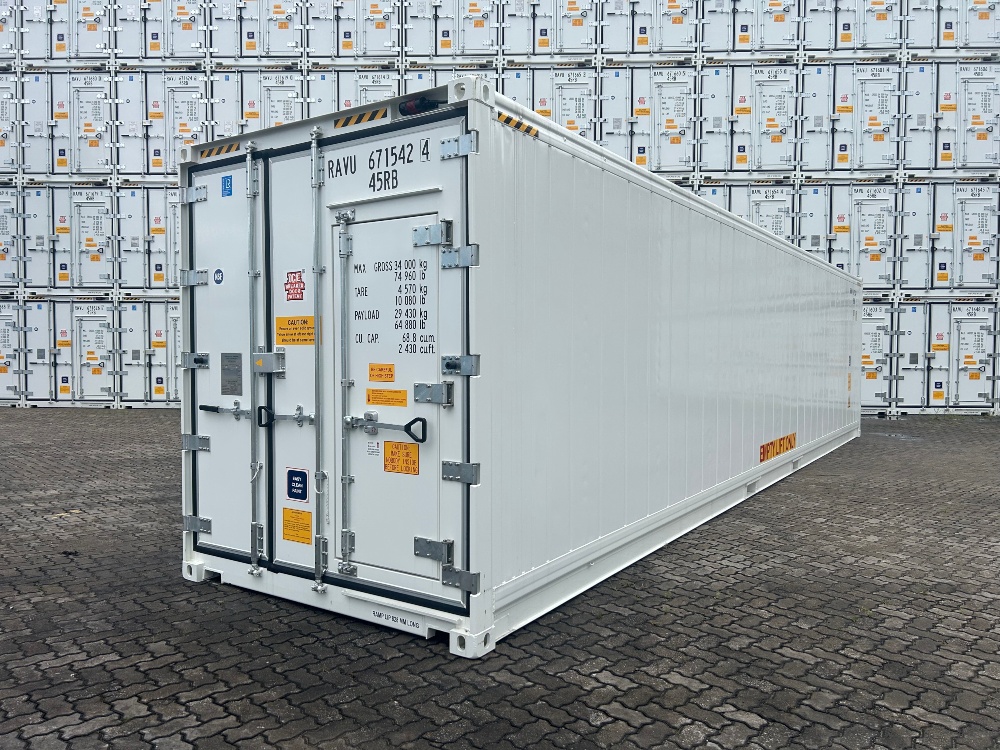

Spec. for 40'HC Reefer (40'RH)

  • External adimensions of 40'RH
  • Length: 12,192 mm
  • Width: 2,438 mm
  • Height: 2,896 mm
  • Internal dimensions of 40'RH
  • Length: 11,584 mm
  • Width: 2,290 mm
  • Height: 2,591 mm
  • Door openings of 40'RH
  • Width: 2,294 mm
  • Height at sill: 2,535 mm
  • Cargo access height: 2,535mm
  • Internal cubic capacity of 40'RH: 68.8 CUM

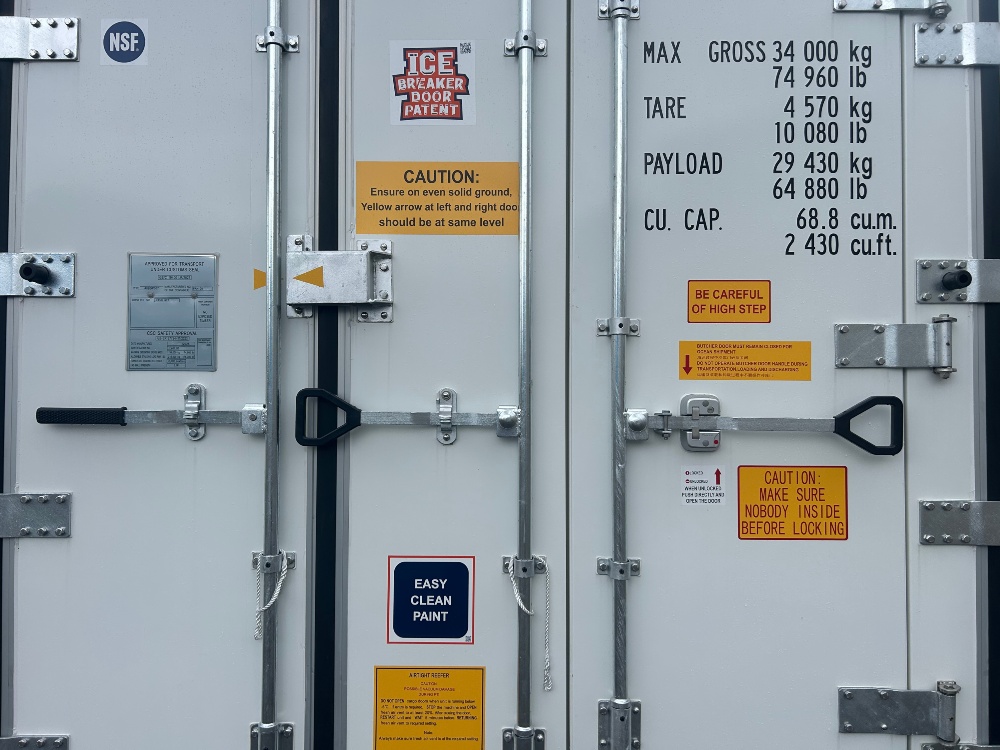

  • Weights & ratings of 40'RH
  • Max. Gross Weight: 34,000 kg
  • Tare weight: 4,520 kg
  • Max. Payload: 29,560 kg
